Kian Industry Hydraulic Platform Lift
Safe and Fast Handling of Heavy Loads
The hydraulic platform lift is one of the most essential pieces of equipment in modern warehouses and multi-story production lines. This device uses powerful hydraulic jacks and an Italian hydraulic pump to vertically raise and lower a platform, transporting pallets of goods, raw material barrels, product boxes, and even heavy equipment between floors.
Kian Industry designs and manufactures these lifts with capacities from 1 to 10 tons, custom platform dimensions based on your needs (up to 300 x 200 cm), and in compliance with the highest safety standards (automatic locking, overload sensor, safety guardrails, emergency stop button). Sample completed projects include a 5-ton lift with dimensions of 200 x 150 cm for the central warehouse of a Tehran food industry, an 8-ton lift with a height of 7 meters for a Tabriz automotive production line, and a fully stainless steel 3-ton lift for the pharmaceutical industry in Isfahan.
Hydraulic Platform Lift
Vertical handling of pallets, boxes, drums, and heavy equipment between warehouse and production line floors
Designed and manufactured by Kian Industry | 24-month warranty | Capacity up to 10 tons | Height up to 10 meters

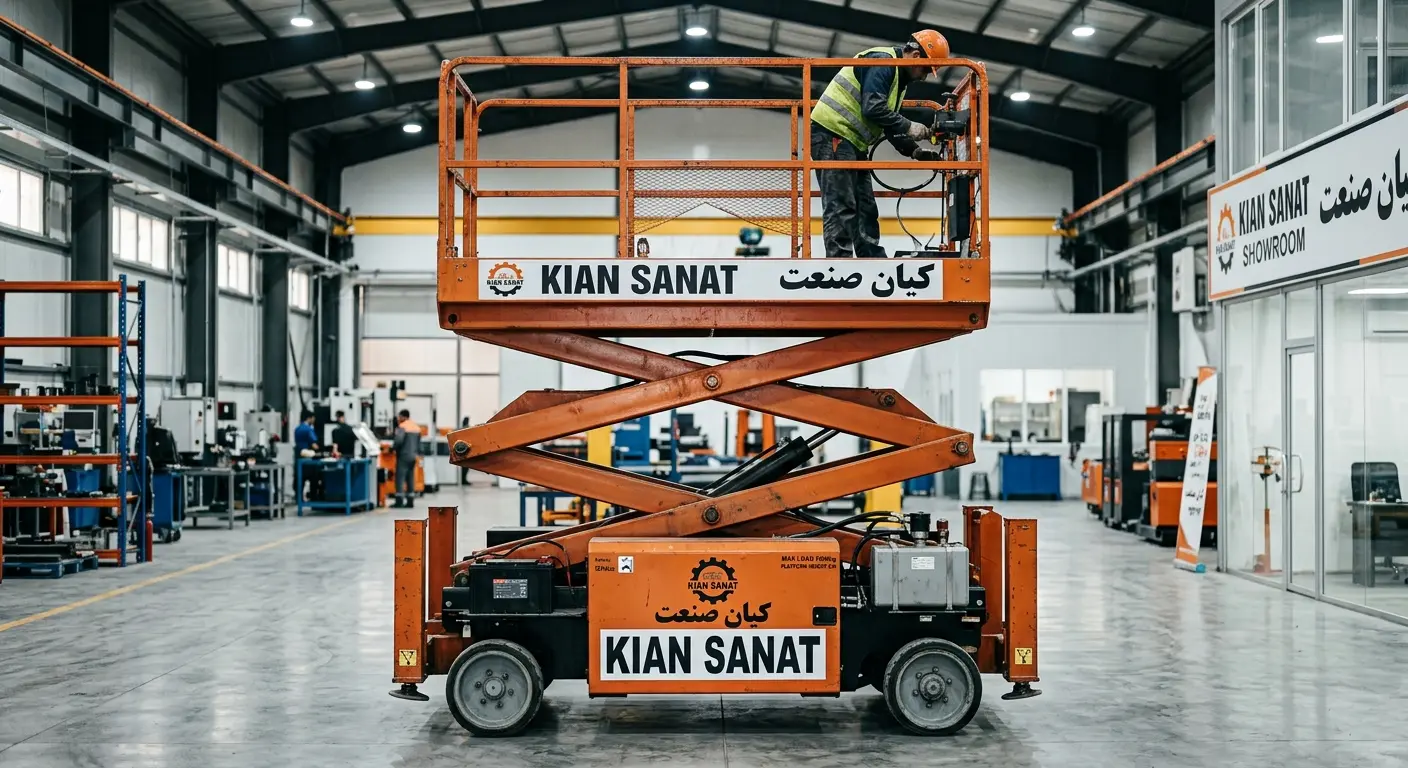

Kian Industry Hydraulic Platform Lift in warehouse and production line
Hydraulic Platform Lift Technical Specifications
| Feature | Range |
|---|---|
| Load Capacity | 1 to 10 tons |
| Lift Height | Up to 10 meters |
| Platform Dimensions | Custom based on needs (150x150 to 300x200 cm) |
| Hydraulic System | Italian hydraulic pump, double or four-way hydraulic jacks |
| Safety | Automatic safety lock, guardrails, overload sensor, emergency stop button |
| Construction Material | Carbon steel with electrostatic paint, stainless steel for food industry |
What is a Hydraulic Platform Lift and How Does It Work?
A hydraulic platform lift is a device that uses hydraulic jacks and a hydraulic pump to vertically raise and lower a platform. This equipment is used for moving pallets, boxes, drums, equipment, and even light industrial vehicles between floors in warehouses, production halls, and assembly lines. The hydraulic system provides high power and smooth, vibration-free movement. By pressing a button, the platform gently rises to the desired height and locks in place with an automatic safety lock. Kian Industry designs and manufactures hydraulic platform lifts with various capacities and custom dimensions based on your needs.
History and Reasons for Manufacturing
Hydraulic lifts have been manufactured since the 1960s, alongside the growth of the warehousing and modern logistics industry. Before that, moving heavy loads between floors was done using forklifts and ramps or cranes, which was dangerous and time-consuming. The hydraulic platform lift was first built in Germany and quickly spread worldwide. Today, this equipment is used in warehouses, production lines, hospitals, hotels, department stores, and multi-story parking lots. Kian Industry, by localizing this technology, offers lifts with European quality at competitive prices to Iranian industrialists.
Applications of Hydraulic Platform Lifts
Warehouses and Logistics Centers: Moving pallets of goods between floors, increasing loading and unloading speed. Production Lines: Transferring raw materials and finished products between different factory floors. Automotive and Heavy Industries: Moving heavy parts and equipment between assembly stations. Food and Pharmaceutical Industries: Handling pallets of raw materials and hygienic products with stainless steel models. Hospitals and Hotels: Moving food, laundry, medical equipment, and luggage between floors.
Advantages of Kian Industry Hydraulic Platform Lifts
Use of high-quality Italian hydraulic pumps and jacks. Smooth and vibration-free movement with speed control capability. Automatic mechanical safety lock at height to prevent sudden falling. Overload sensor that stops the device if capacity is exceeded. Guardrails and safety doors at floors (optional). Custom platform dimensions based on your needs. Can be installed outdoors and in humid environments with anti-corrosion coating. 24-month warranty and 10-year after-sales service. Competitive pricing due to direct manufacturing at Kian Industry's factory.
Types of Models
Single Jack (Central) Lift: Suitable for capacities up to 3 tons and small platform dimensions. Economical. Double Jack (Side) Lift: Suitable for capacities from 3 to 7 tons with high stability. Four Jack Lift: Suitable for capacities from 7 to 10 tons and extra heavy loads. Stainless Steel Model: For food, pharmaceutical, and humid environments. Guide Shaft Model: For vibration-sensitive loads requiring high precision.
Maintenance and Troubleshooting
Monthly inspection: Check hydraulic oil level, inspect hoses and connections, test safety lock function. Quarterly inspection: Change hydraulic oil (every 6 months), inspect pump and control valves, lubricate moving parts. Annual inspection: Full inspection of jacks and cylinders, inspect steel structure and welds, repaint. Common issues: Platform not lowering (low oil or clogged valve), platform not rising (overload or pump failure), platform sagging (jack leakage or check valve failure). With proper maintenance, a hydraulic platform lift can last up to 20 years.
